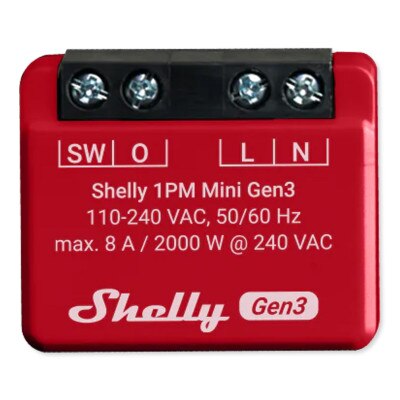

Shelly Wi-Fi 1PM Mini Gen3 Smart Relay

$15.99
SKU: SHGEN31PMMINI

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

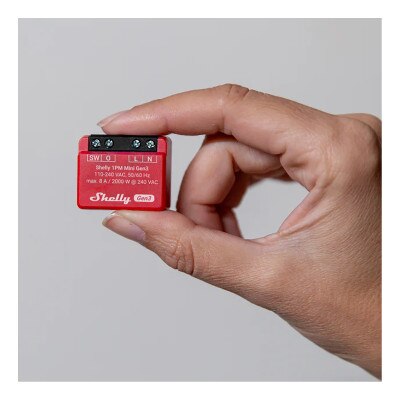

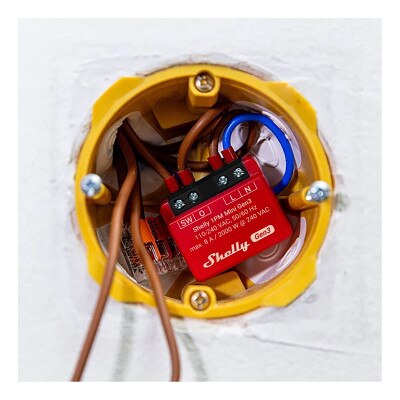

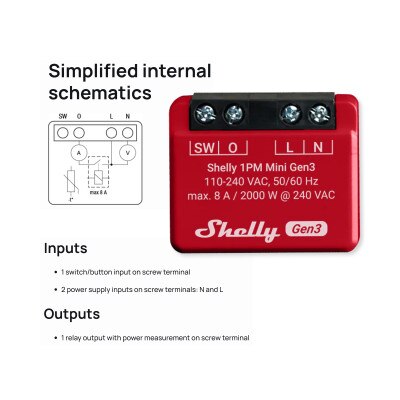

The Shelly Wi-Fi 1PM Mini Gen3 Smart Relay is designed to automate and monitor your electrical circuits or appliances via Wi-Fi technology. Designed to fit into small places, it can be installed behind a wall circuit or inside the casting of an appliance. With built-in Wi-Fi, you can connect it directly to your network without requiring a hub, and manage it via the Shelly app or integrate it with leading smart home platforms like Amazon Alexa, Google Home, or Home Assistant. It includes a single switch/button input, two power supply inputs, and one relay output with built-in power measurement. The device supports various load types, including resistive loads like incandescent bulbs and heating devices, capacitive loads such as capacitor banks and electronic equipment, and inductive loads like LED drivers, transformers, fans, refrigerators, and air conditioners. Its power monitoring feature provides real-time insights into energy usage, helping you reduce costs and optimize consumption. Built with advanced safety features, including overload and overheat protection, the Shelly 1PM Mini Gen 3 combines convenience, reliability, and efficiency in a small yet powerful package.

  • Built-in Wi-Fi for direct control via the Shelly app—no hub needed
  • Real-time power monitoring to track energy consumption

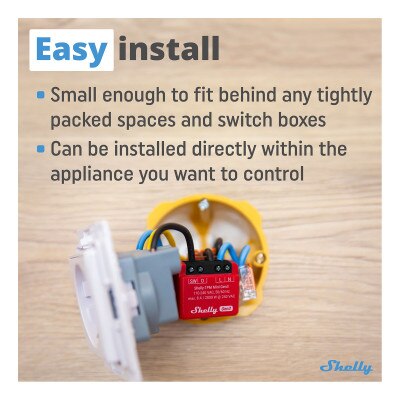

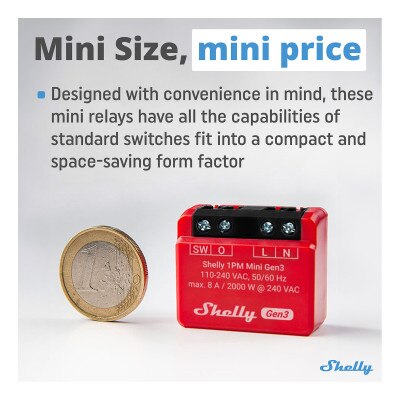

  • Compact size for easy installation in standard electrical enclosures
  • Compatible with Alexa, Google Home, and Home Assistant for voice control and automation
  • Supports various devices, including lights, fans, and small appliances
  • Overload and overheat protection for enhanced safety
  • Advanced scheduling and scene automation for energy efficiency and convenience

Why You Would Use This Product:

The Shelly Wi-Fi 1PM Mini Gen 3 is perfect for automating and managing your electrical devices. Use it to monitor the energy consumption of high-power appliances like refrigerators, heaters, or washing machines, and make adjustments to save on electricity costs. Automate lights and appliances to operate on a schedule, ensuring they're on only when you need them. For added security, control devices remotely while you're away, giving the appearance of an occupied home. Its compact design and versatile functionality make it a practical choice for both residential and commercial settings.

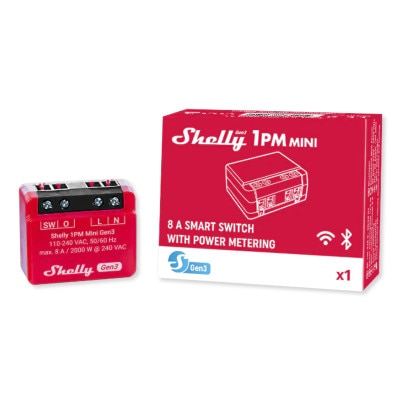

In The Box:

  • Wi-Fi 1PM Mini Gen3 Smart Relay
  • Manual

NOTE: Requires connection to a Wi-Fi network.

Tech Specs

  • Part Number: Gen 3 1PM Mini
  • EAN: 3800235261590
  • Power Supply: 110 – 240 VAC
  • Relay: NO contact, 1-pole, µ contact
  • Power Consumption: <1.2 W
  • External Protection: Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
  • Max. Switching Voltage: 240 VAC
  • Max. Switching Power: 2000 W
  • Max. Switching Current: A/240 VAC
  • Power Measurement: Yes
  • Voltage Protection/Cutoff: Yes
  • Current Protection/Cutoff: Yes
  • Max Power Protection/Cutoff: Yes
  • Internal-Temperature Sensor: Yes
  • Wi-Fi Protocol: 802.11 b/g/n
    • RF Band: 2401 – 2495 ÃŒHz
    • Max. RF Power: <20 dBm
    • Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
    • RF Band: 2400 – 2483.5 MHz
    • Max. RF Power: <4 dBm
    • Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP-Shelly-C38F
  • Flash: 8 MB
  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • MQTT: Yes
  • Scripting: Yes
  • UDP: Yes
  • Advanced Schedules: Yes
  • KVS (Key-Value Store): Yes
  • Screw Terminals Max Torque: 0.4 Nm / 3.5 lb/in
  • Conductor Cross Section: 0.2 to 2.5 mm? / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
  • Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
  • Mounting: Wall box
  • Terminal Color: Black
  • Shell Material: Plastic
  • Shell Color: Red, C-3%; M-100%; Y-70%; K-12%
  • Ambient Working Temperature: -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity: 30% to 70% RH
  • Max Altitude: 2000 m / 6562 ft

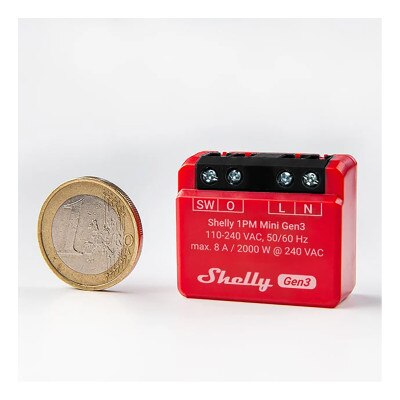

  • Size (HxWxD): 1.34 x 1.11 x 0.63 ±0.02 inches (29x34x16 ±0.5 mm)
  • Weight: 18 g/0.63 oz
  • Warranty: 3 Year
